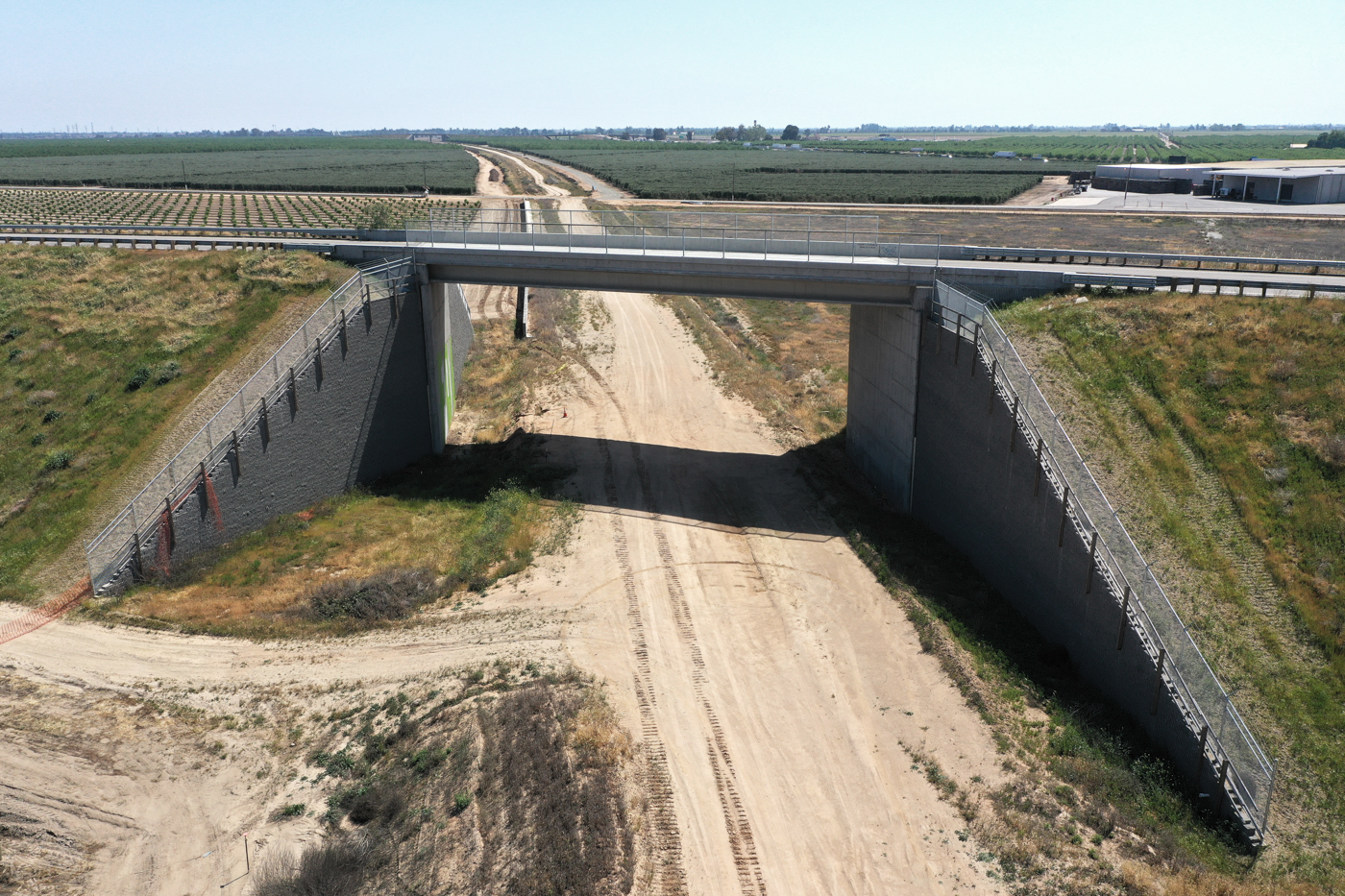

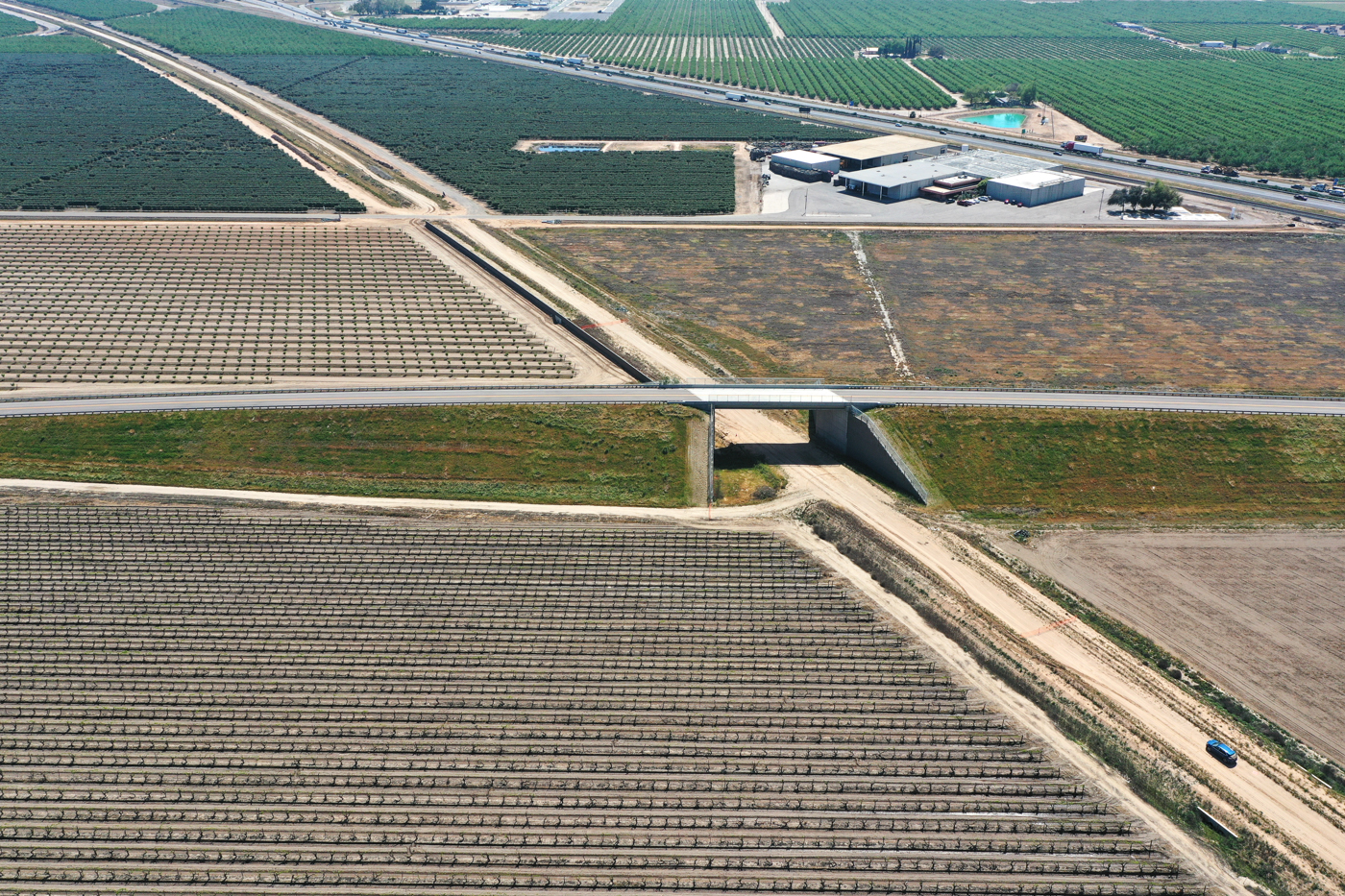

Avenue 8 Overpass

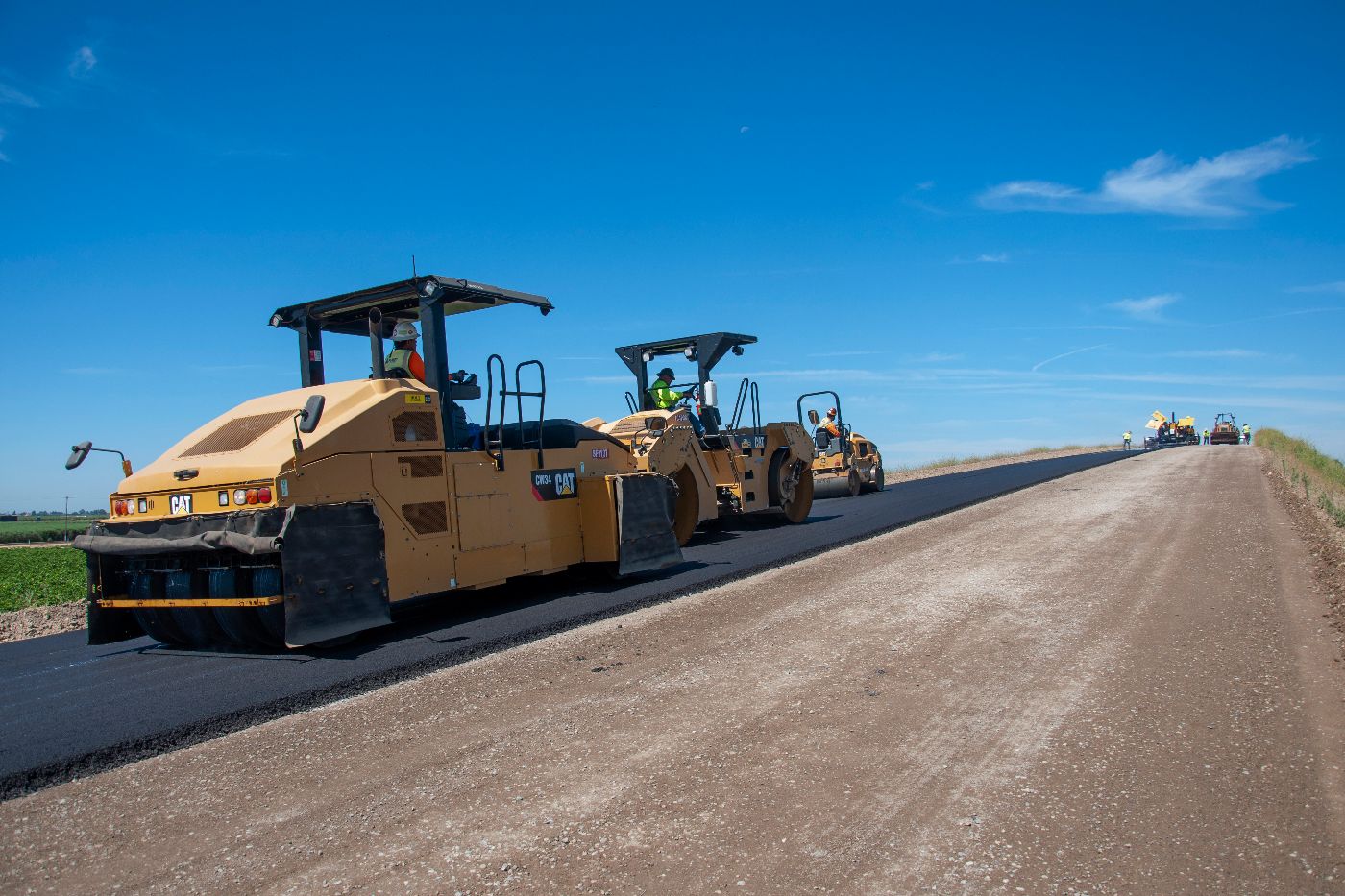

Asphalt paving is now largely complete for the roadway leading up to the Avenue 8 overcrossing bridge, in preparation for the Madera County road’s reopening. Trucks filled with hot asphalt empty their loads into the front of a paving machine, which then lays out a slab of pavement about six-inches thick, as vibrating rollers compact it. Final pavement striping, drainage inlets, and guardrail installation are the last steps prior to reopening the road.

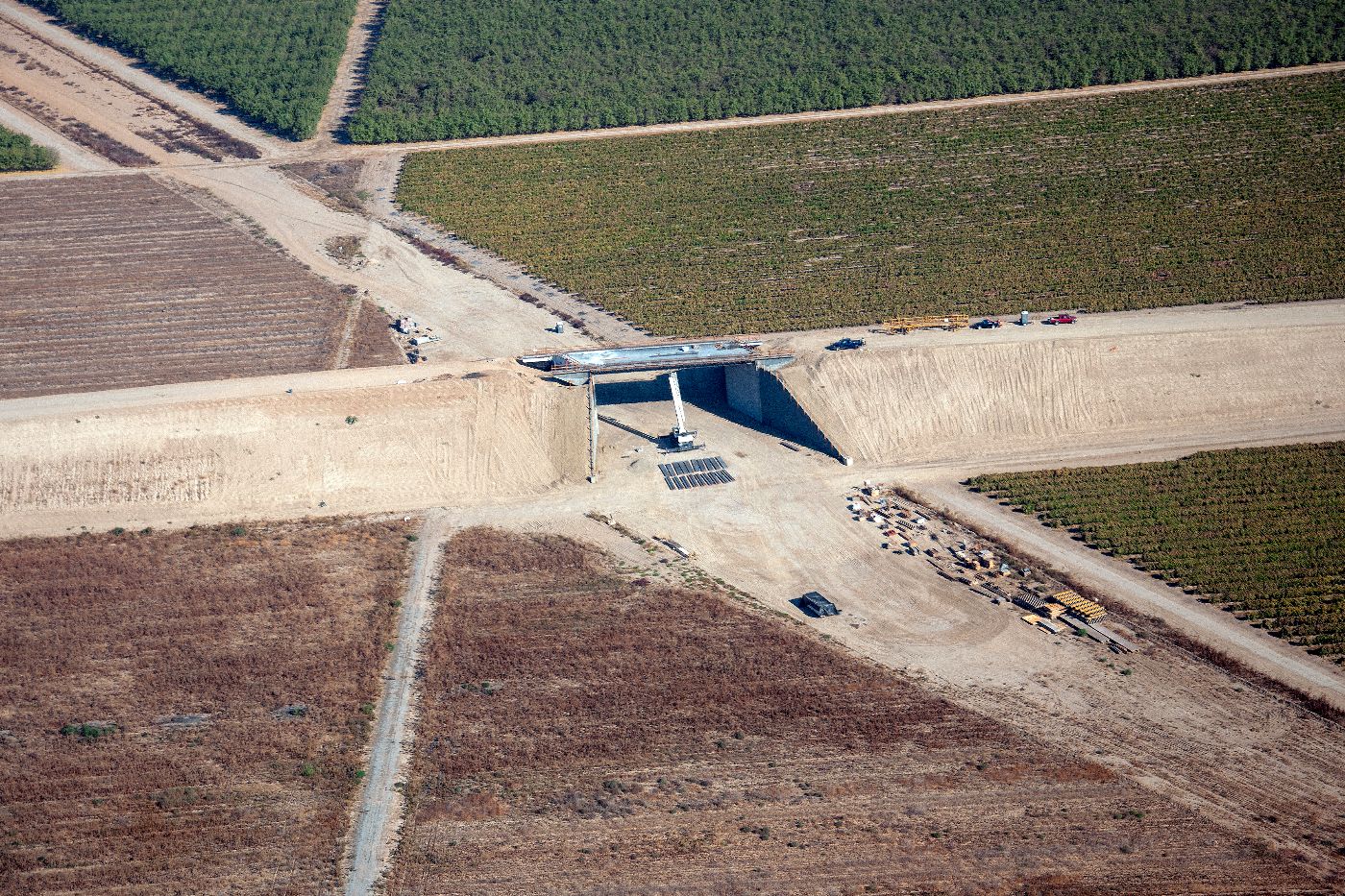

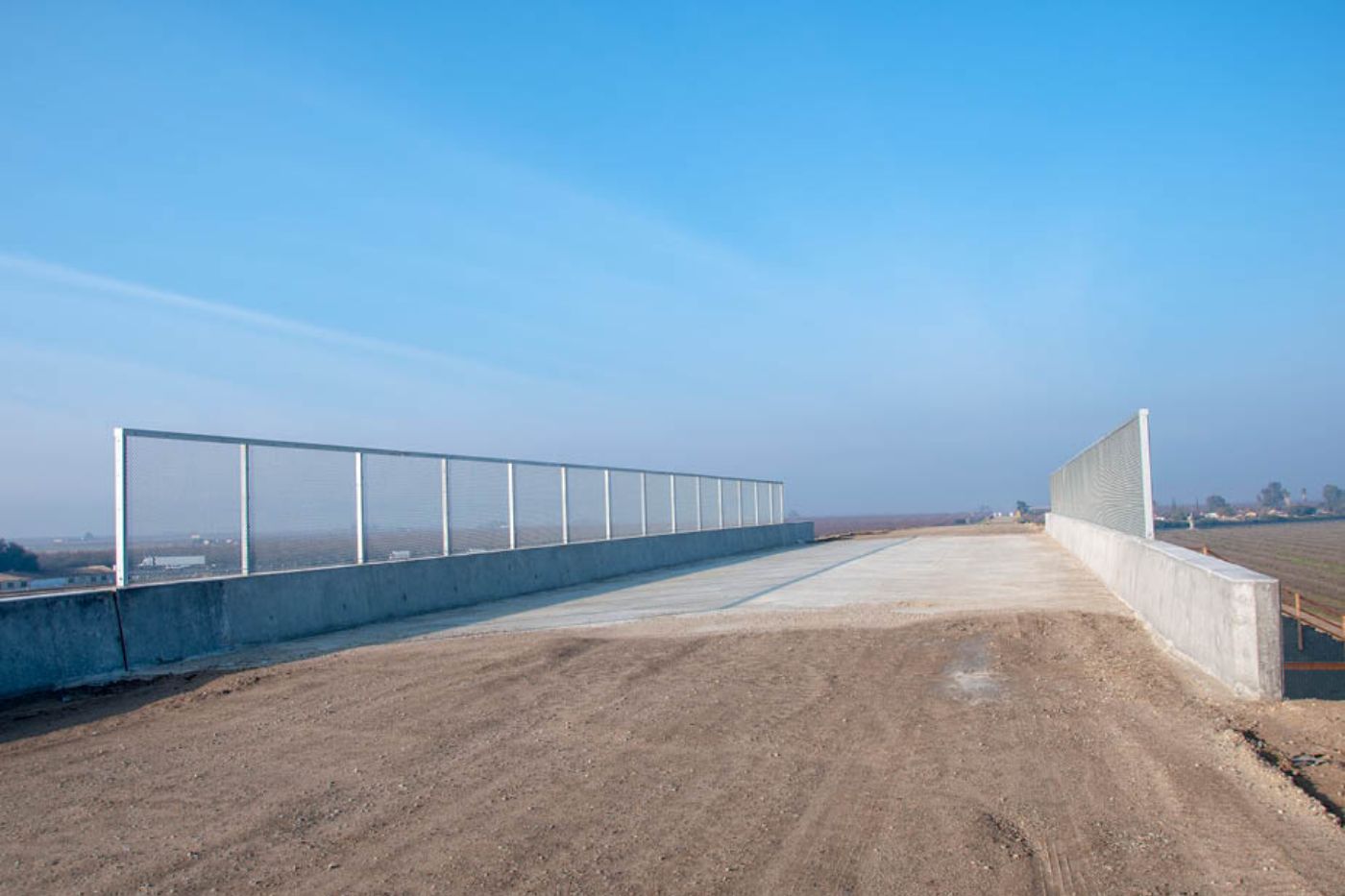

As at Avenue 11, the bridge deck for the Avenue 8 overcrossing in Madera County is mostly complete, but final paving for the approaches waits for better weather.

The bridge deck and the wing walls extending off the Avenue 8 overcrossing in Madera County have been poured and crews will next pour the traffic barrier along the sides of the structure. The block retaining walls have been completed on either side of the abutments and fill dirt placed to finish the slope leading up to the bridge. Utility conduit is also being installed for future utilities.

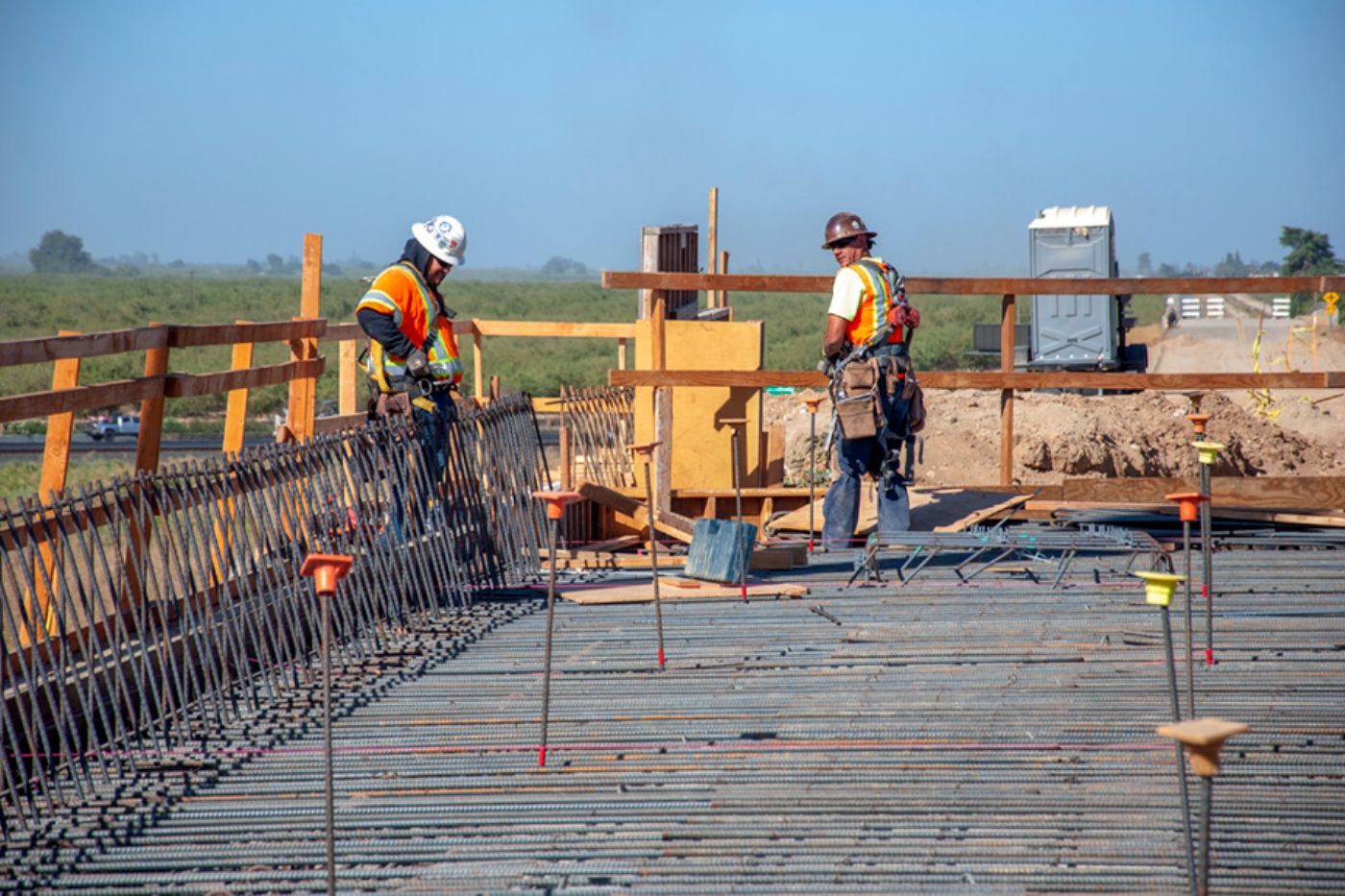

At Avenue 8 in Madera County, crews construct wing walls for the single span bridge east of State Route 99. Approximately 35,000 lbs. of deck rebar is being tied on the bridge deck. The bridge deck is currently scheduled to be poured in early October. The block retaining walls have been completed on either side of the abutments and fill dirt placed to finish the slope leading up to the bridge.

At Avenue 8 in Madera County, rebar is in place for a single span bridge east of State Route 99. Crews are working on the bridge wing walls and bridge deck rebar. The block retaining walls have been completed on either side of the abutments and fill dirt placed to finish the slope leading up to the bridge.

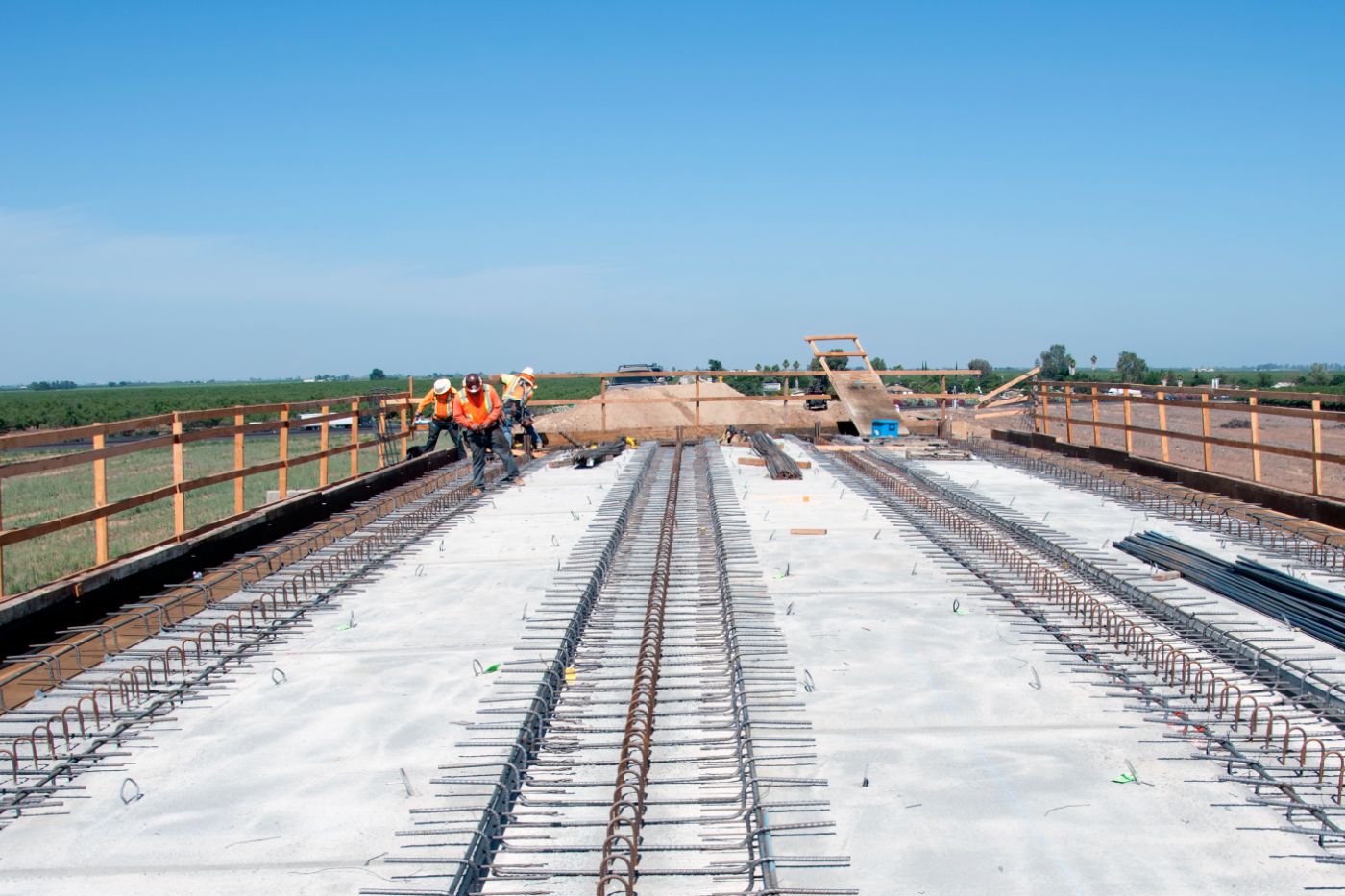

At Avenue 8 in Madera County, the precast deck panels which act as the underside (or soffit) of the bridge deck have been set and crews are tying deck rebar for a single span bridge east of State Route 99. The block retaining walls have been completed on either side of the abutments and fill dirt placed to finish the slope leading up to the bridge. The concrete deck pour will be completed after Avenue 11.

At Avenue 8 in Madera County, the precast deck panels, which act as the underside (or soffit) of the bridge deck, have been set and crews are tying deck rebar for a single span bridge that will cross the high-speed rail alignment east of State Route 99. The block retaining walls have been completed on either side of the abutments and fill dirt placed to finish the slope leading up to the bridge.

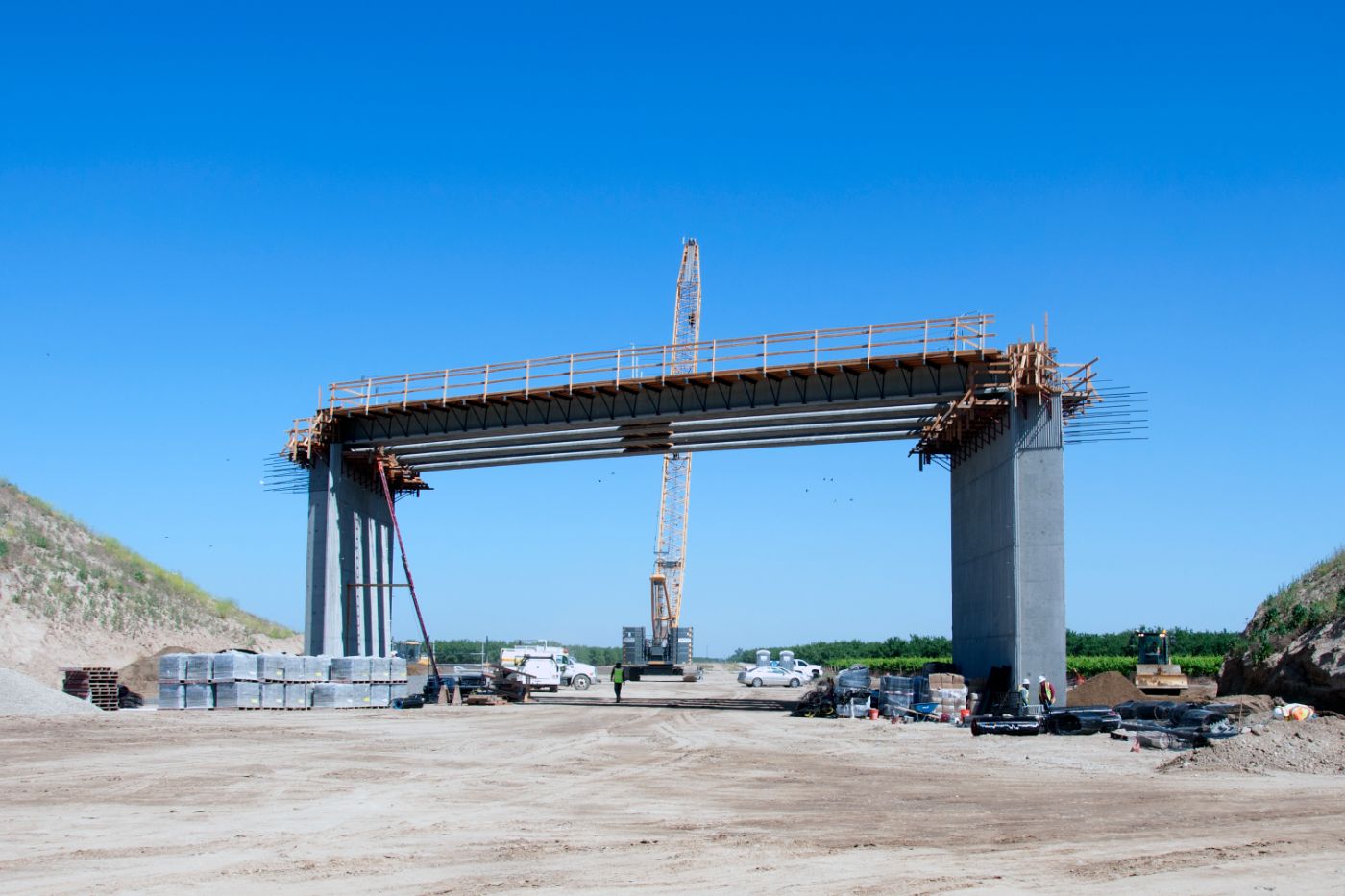

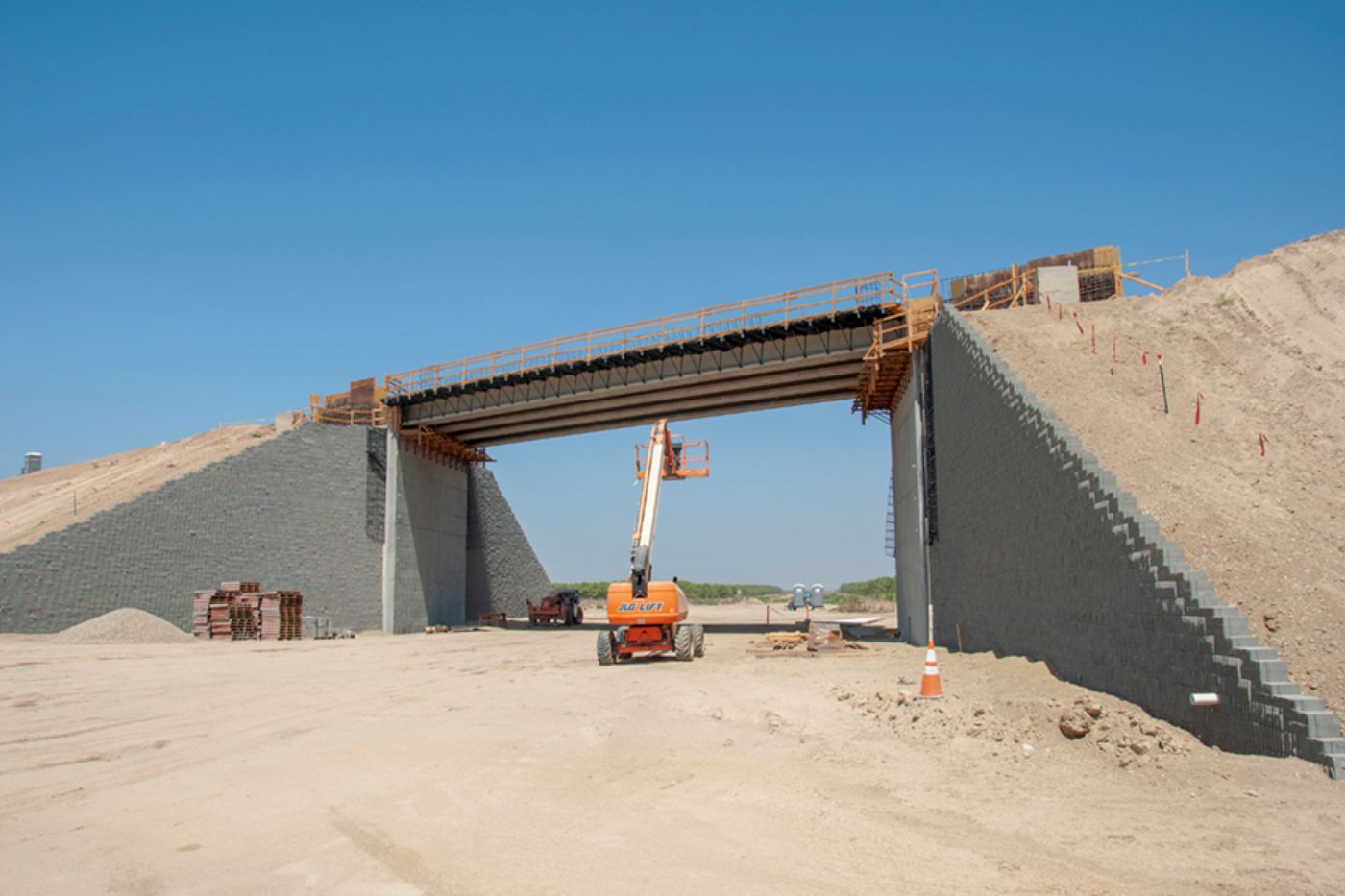

Girders have been set for the single span bridge at Avenue 8, which crosses the high-speed rail alignment east of State Route 99 in Madera County. The block wall leveling pads have been poured and fill-dirt is being compacted as the MSE blocks are being set for the retaining walls. Crews are currently forming and installing steel for the bridge diaphragms. Diaphragms stabilize the girders permanently and help improve load sharing of the bridge elements.

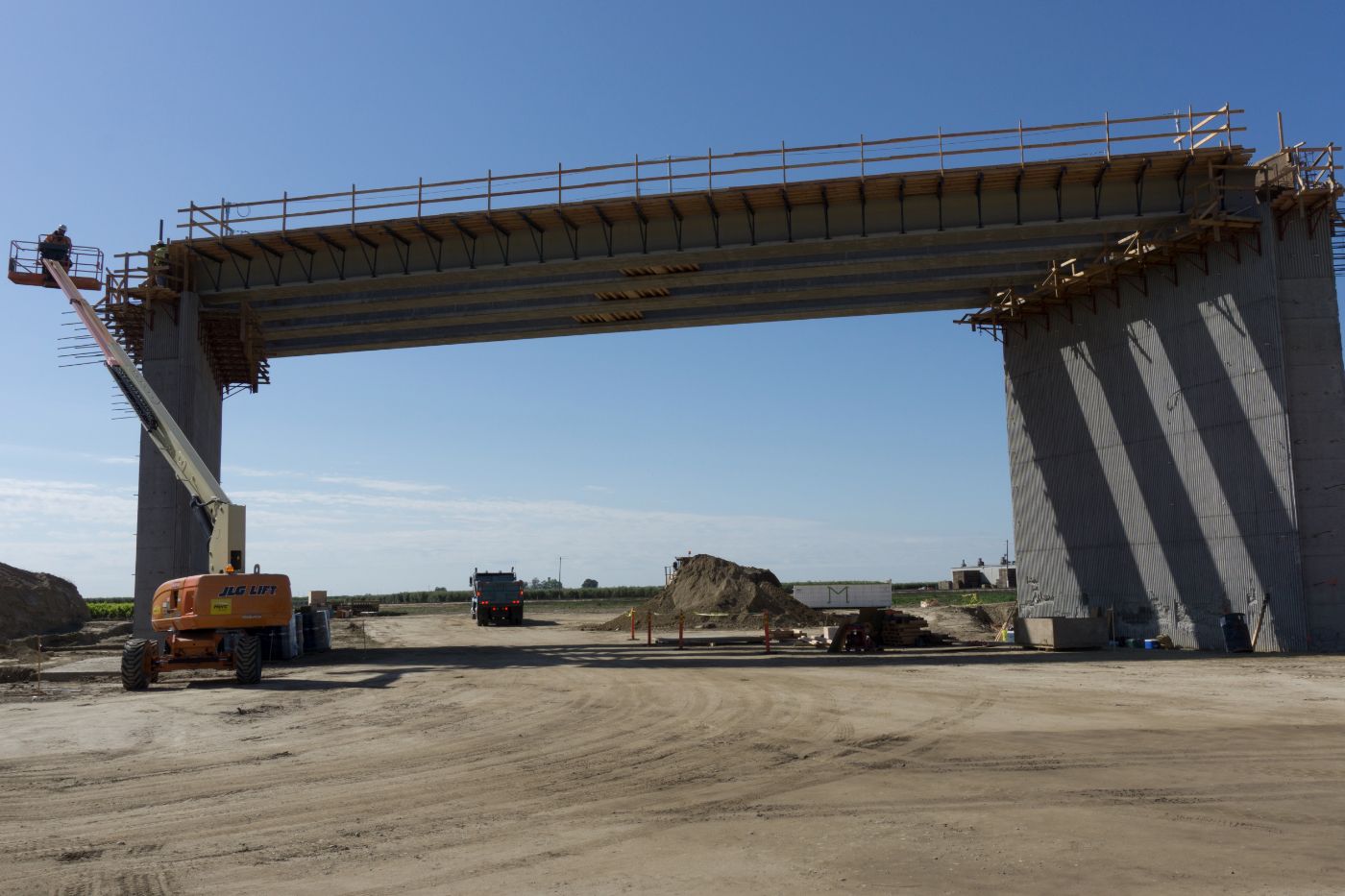

At Avenue 8, west of Road 33, girders were recently set for the one span bridge that will cross the high-speed train alignment. The MSE block wall leveling pad has been poured and the MSE blocks will start to be set this month. Crews are about to begin forming the bridge deck.

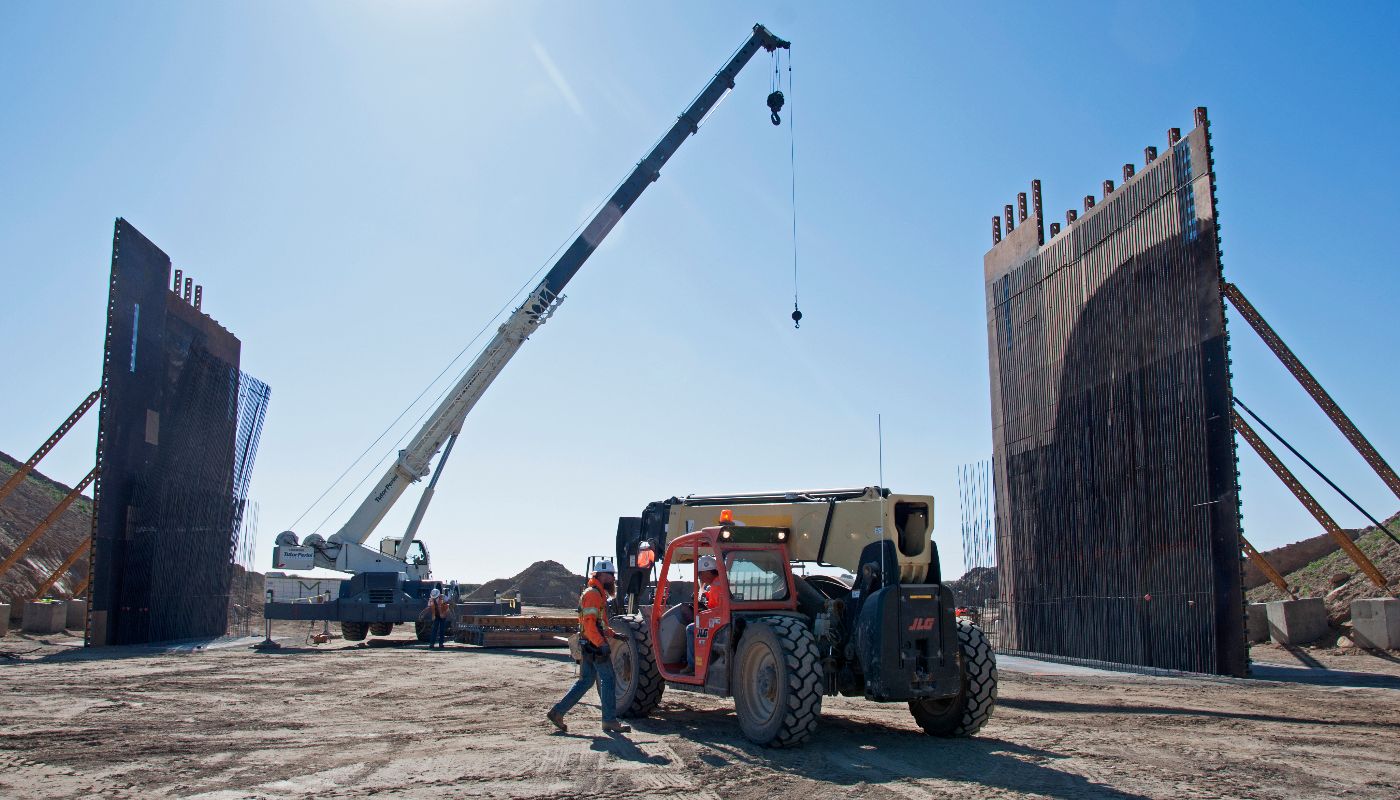

Abutment construction is underway for the overcrossing at Avenue 8. Crews have installed rebar and are now placing the concrete forms for the abutments that are going up just east of State Route 99 in Madera County. Fill dirt has already been brought to the site and will be tied into the structure that will eventually become a bridge to take traffic over the high-speed trains.
